Complete Interferometer System
No study of interferometry should overlook the historical importance of the Michelson interferometer. Yet in the laboratory, the Fabry-Perot and Twyman-Green interferometers can be more important tools; the first for high-resolution spectroscopy, the second for testing and producing optical components with aberrations that can be measured in fractions of a wavelength.

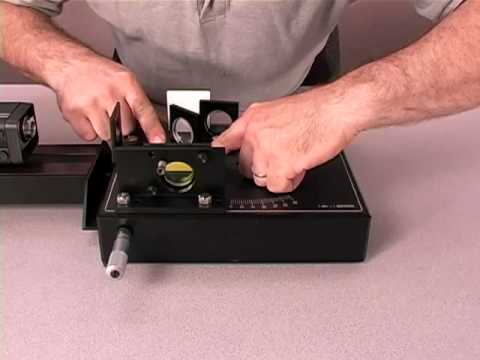

The PASCO Interferometer is a high-precision, movable-mirror interferometer that can be used to perform Michelson, Fabry-Perot and Twyman-Green interferometry. Mirrors are attached with thumbscrews, so it's easy to set up and change configurations.
The PASCO Interferometer can be ordered in a variety of systems. The OS-9255A Basic Interferometer can be operated in either the Michelson or Fabry-Perot modes. The Complete Interferometer Systems also contain components for the Twyman-Green mode and a vacuum pump for the refractive index of air experiment.
Note: The fitted case will hold all components and accessories except the 5 kg base, which must be stored separately.
Special Features
•Stable: The massive (5 kg) base is machined from a single block of aluminum ensuring extremely stable optics.
•Smooth Mirror Movement: With the taut-band suspension system, there's no starting or stopping friction and virtually no backlash (less than 0.5 micron).
•Precise Measurements: Mirror control is extremely fine— one micron per division of the micrometer head. The mirrors and beam-splitter are flat to 1/4 wavelength to ensure uniform interference patterns.
•Larger Optics: The 3.2 cm (1 1/4") diameter optics in the PASCO Interferometer produce larger and sharper interference patterns for better experimental results.
•Complete: The Basic Interferometer icludes everything necessary to perform basic Michelson and Fabry-Perot interferometry.
